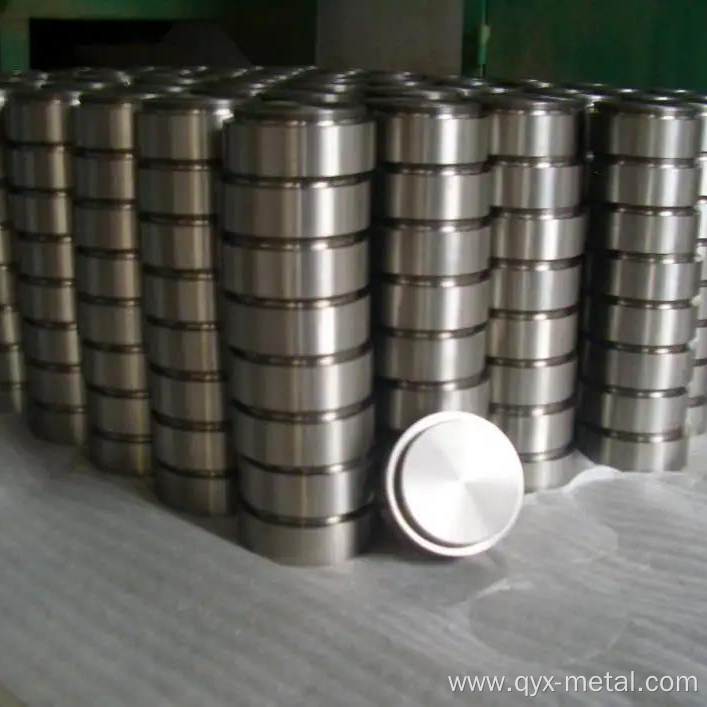

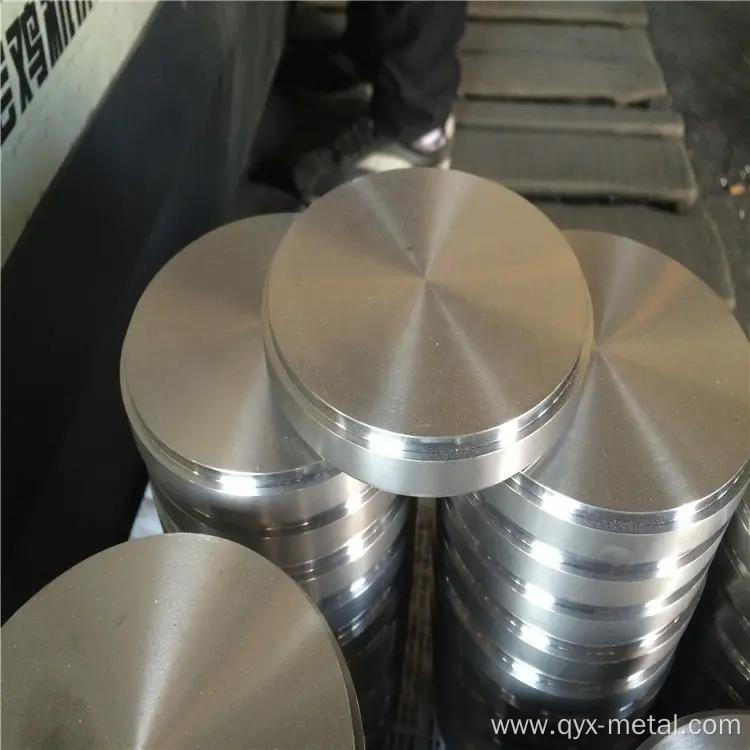

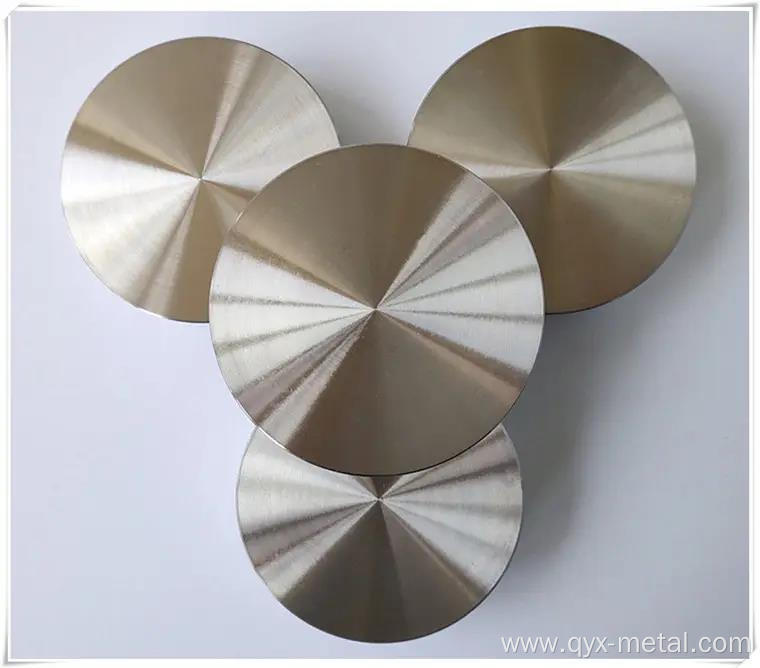

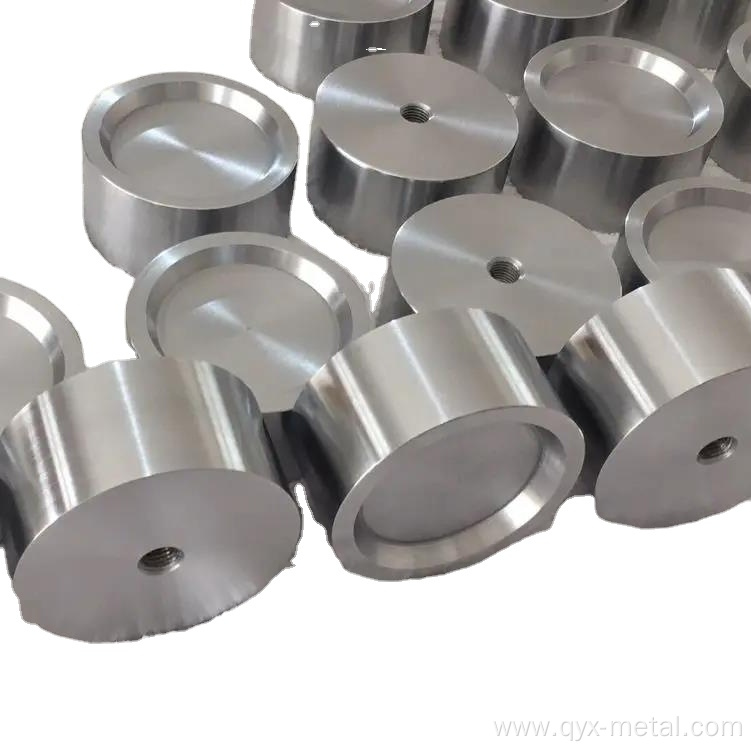

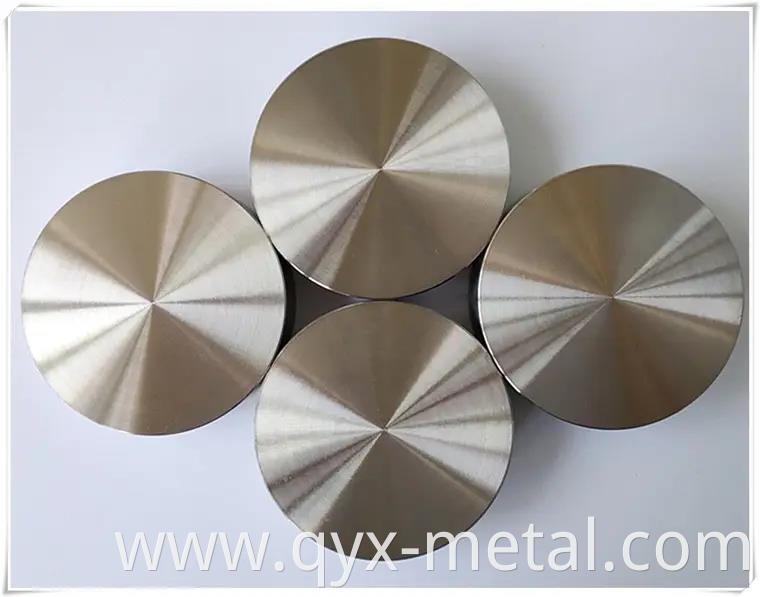

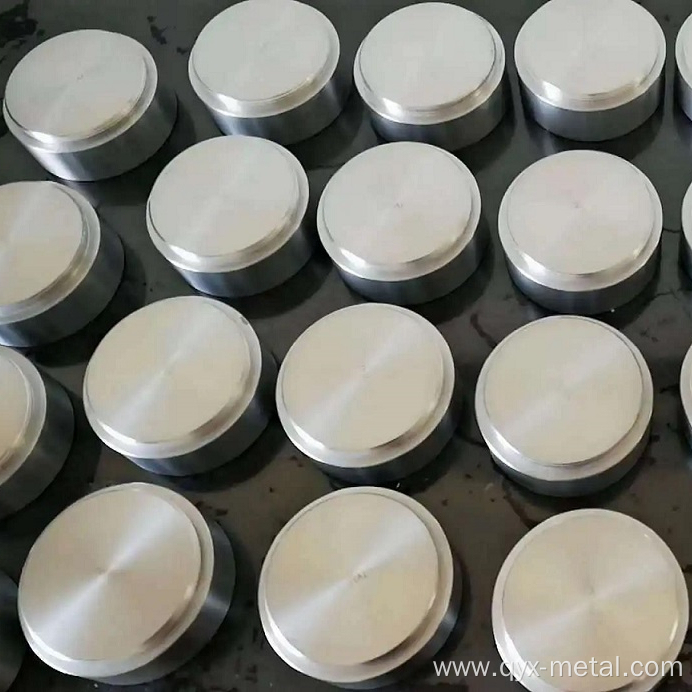

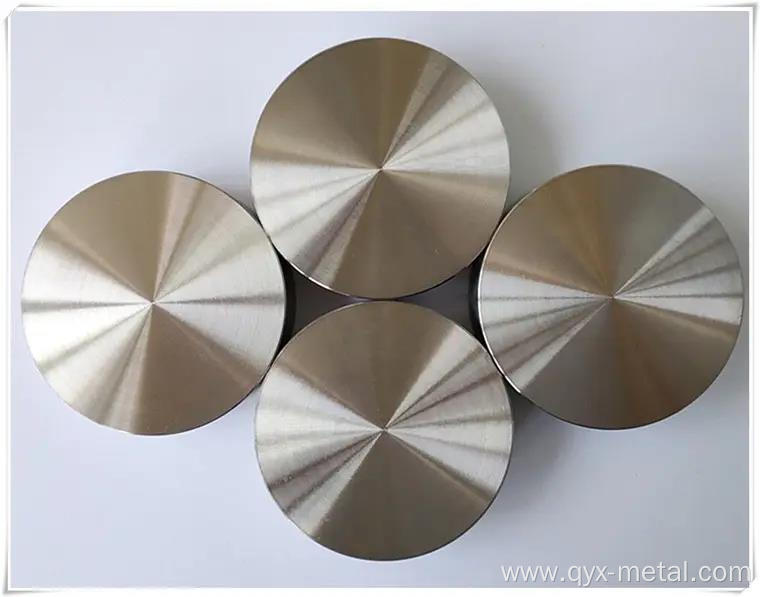

Titanium Target Titanium Target
The product purity we can provide: 99.5%, 99.7%, 99.8%, 99.9%, 99.95%, 99.99%, 99.995%.
The shape and size we provide: planar target, cylindrical target, arc target, special-shaped target and so on.
Titanium has an atomic number of 22 and an atomic weight of 47.867. It is a silver-white transition metal characterized by light weight, high strength, metallic luster, and resistance to moisture and chlorine gas corrosion. α-type titanium is a hexagonal crystal system, and β-type titanium is a cubic crystal system. The transition temperature is 882.5°C. The melting point is (1660±10)°C, the boiling point is 3287°C, and the density is 4.506g/cm3. Soluble in dilute acid, insoluble in cold and hot water; strong resistance to seawater corrosion. Titanium is an important structural metal developed in the 1950s. Titanium alloys have low density, high specific strength, good corrosion resistance, low thermal conductivity, non-magnetic properties, weldability, and good biocompatibility. The surface can be highly decorated and other characteristics, widely used in aviation, aerospace, chemical industry, petroleum, electric power, medical treatment, construction, sporting goods and other fields.
The purity of the target material has a great influence on the performance of the film, and the target material is usually a polycrystalline structure. For the same target material, the sputtering rate of the target with fine grains is faster than that of the target with coarse grains; and the thickness distribution of the film deposited by sputtering with a smaller grain size difference (uniform distribution) is more uniform .
The titanium target supplied by Beijing Ruichi has a purity of up to 99.995%. The production process includes melting and thermal deformation. The length is 4000mm and the width is 350mm. The crystal grains are fine, evenly distributed, high purity, less inclusions, high purity, deposited TiN film is used in decoration, tooling, semiconductor and other fields, with good adhesion, uniform coating and bright color.
Parameters of high-purity titanium targets produced by us:
Resistivity 54?Ohmcm
Superconducting critical temperature 0.4000K
Temperature coefficient 0.00380K??
Tensile Strength 230.00 - 460.00 MPa
Density 4.5g/cm?
Melting point 1660°C
Boiling point 3287°C
Latent heat of evaporation 8893J g??
Thermal conductivity 21.90 W m?? K??
We can also produce other titanium alloy targets:
TiAl5 at%,TiAl10 at%,TiAl20 at%,TiAl25 at%,TiAl30 at%,TiAl40 at%,TiAl50 at%, TiTa,TiSi5 at%,TiSi 10at%,TiSi15 at%,TiSi20 at%,TiSi25 at%, TiSi75 at%,TiAlNb,TiAlSi,TiZr,TiLa,TiCe,TiV,TiAlZrSi,TiAlAg,TiAlLa,TiAlRe, TiZrAlRe, TiSiB, TiN,TiAlB,TiSiB,TiCrAlSiB,TiAlCu,TiB?...
Various purities are available:
99.5%, 99.8%, 99.9%, 99.99%...
