hydrogenation unit porous titanium electrode filter elements

$20

≥10
Others

option:

customized

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand Name: QYX

Technique: sintered & Rolled

Grade: Titanium

Powder Or Not: Not Powder

Ti Content (%): 99.8%

Product Name: sintered titanium filter elements

Shape: tube, disc, plate

Standard: GB/T6887-2007

Filter Level: T9

Filtration Precision: 0.2 um-80 um

Breathability: 1.5

Thickness: 0.5-3mm

Compressive Strength: 3.0 mpa/cm3

Porosity: 2.5 um

Place Of Origin: China

Whether Powder: Is Powder

Processing Service: Cutting, Decoiling, Rolled

Place Of Origin: Shaanxi, China

Application: hydrogenation unit

Material: titanium,nickel,monel,Hastelloy

Supply Ability & Additional Information

Packaging: wooden case

Transportation: Ocean,Land,Air,Express

Supply Ability: 1000 Piece/Pieces per Month

Port: Shanghai,Tianjin,Shenzhen

Payment Type: L/C,Western Union,T/T,MoneyGram

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: piece

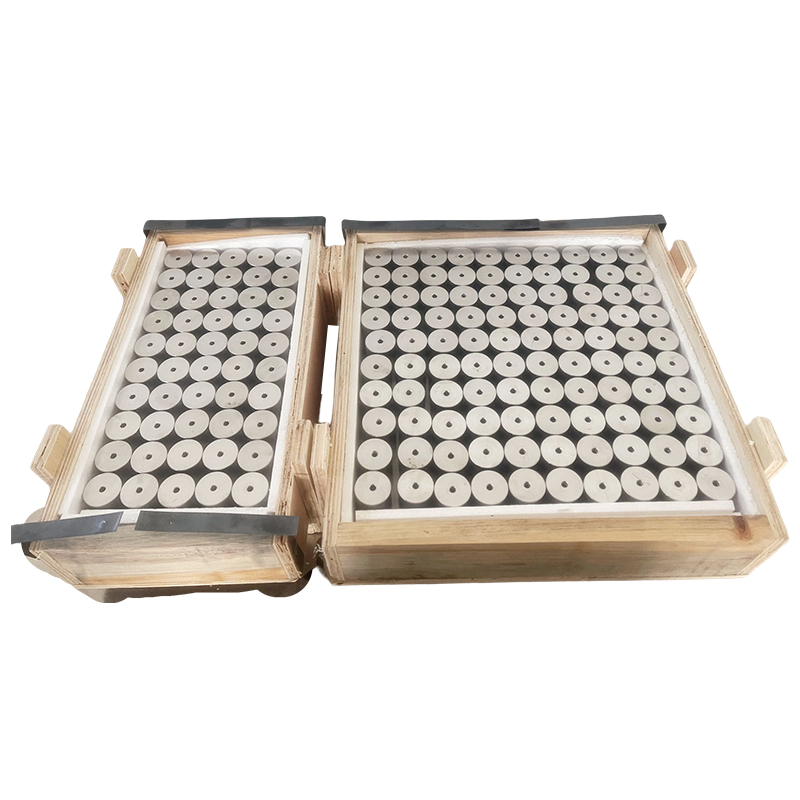

Package Type:: wooden case

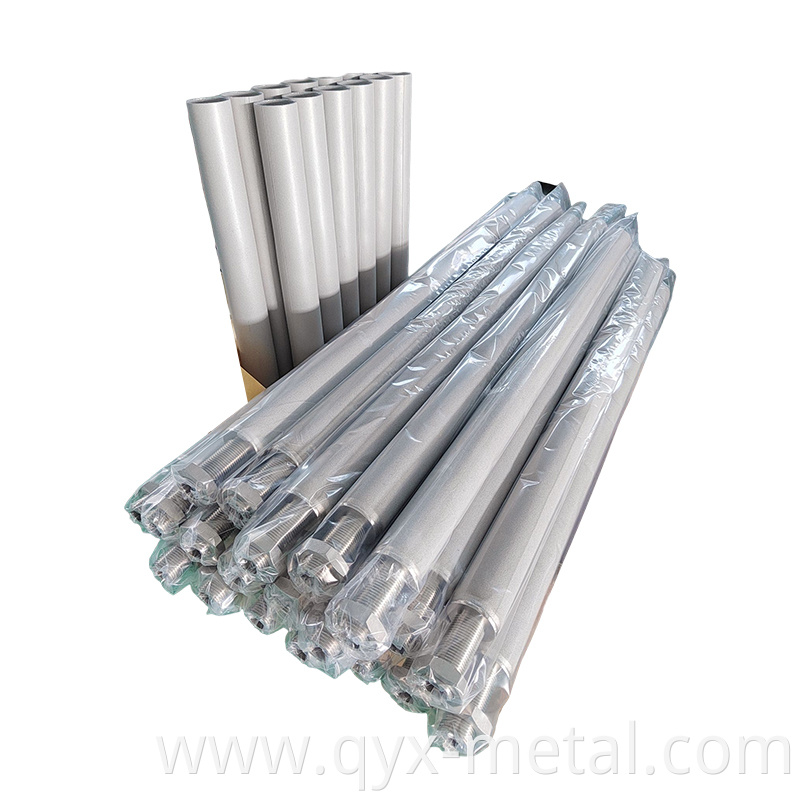

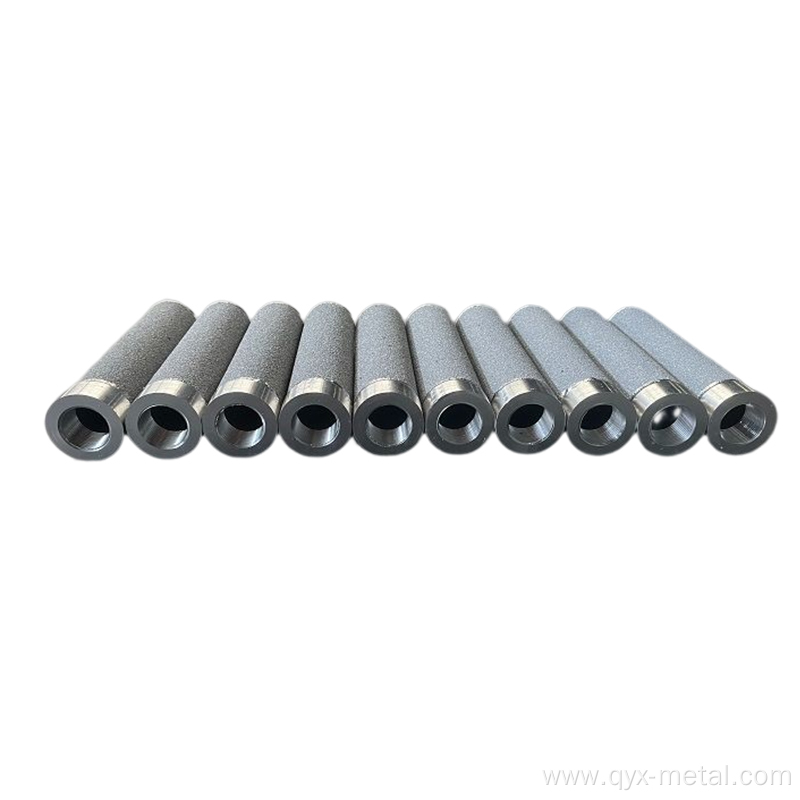

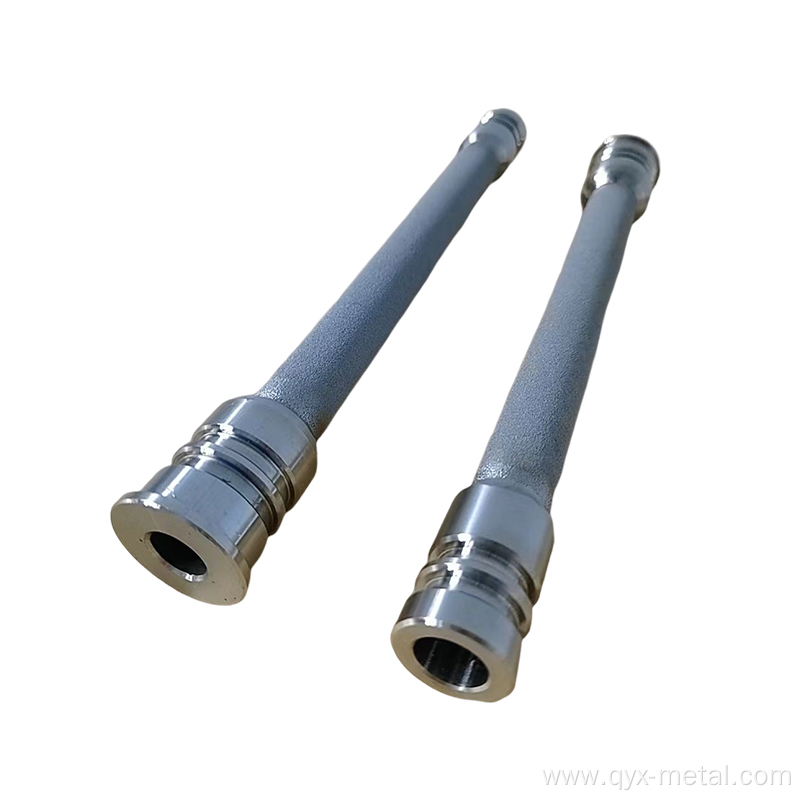

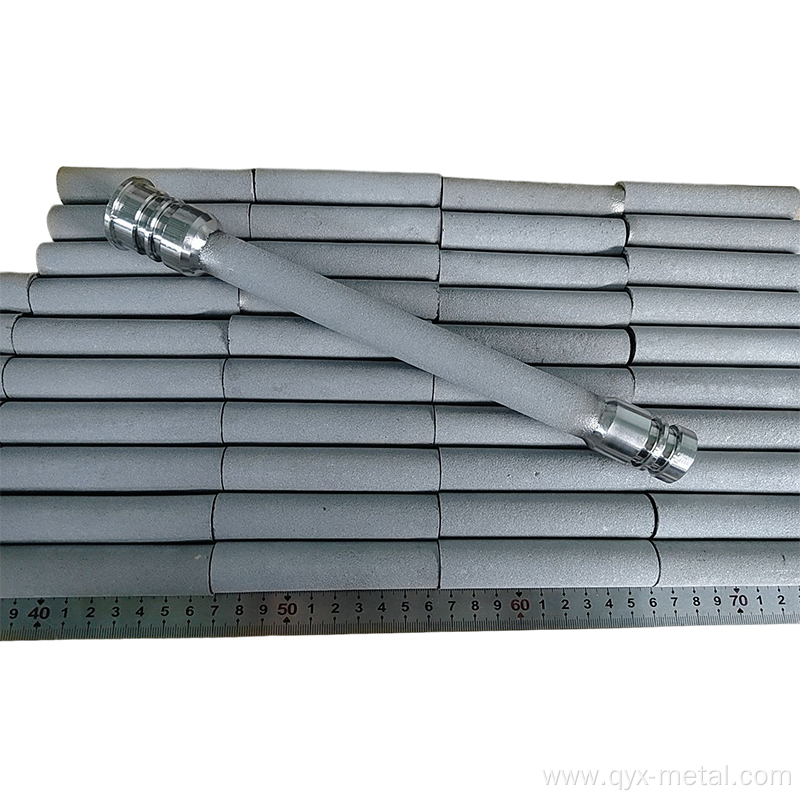

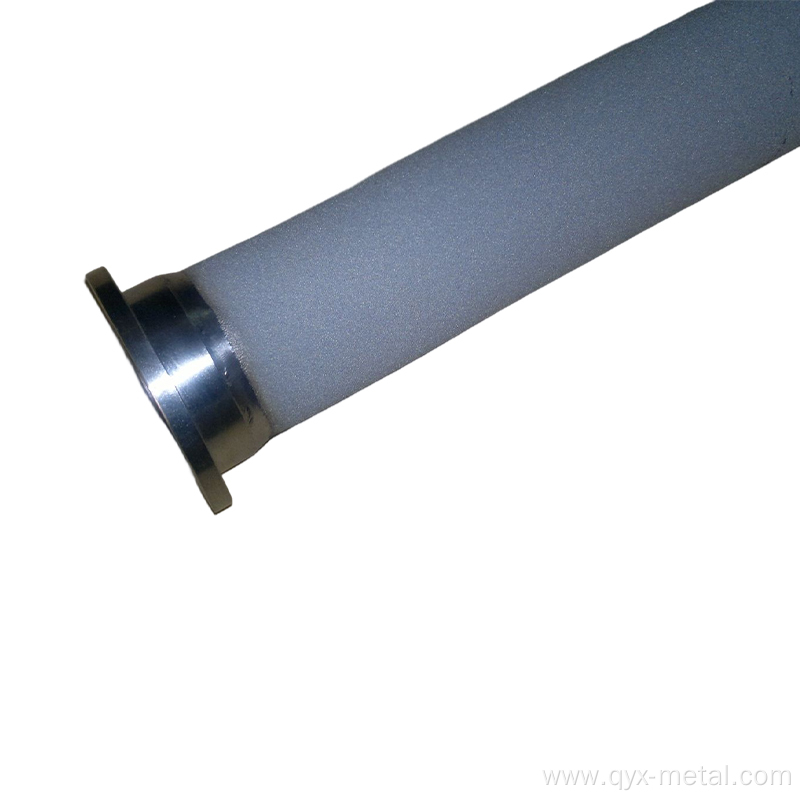

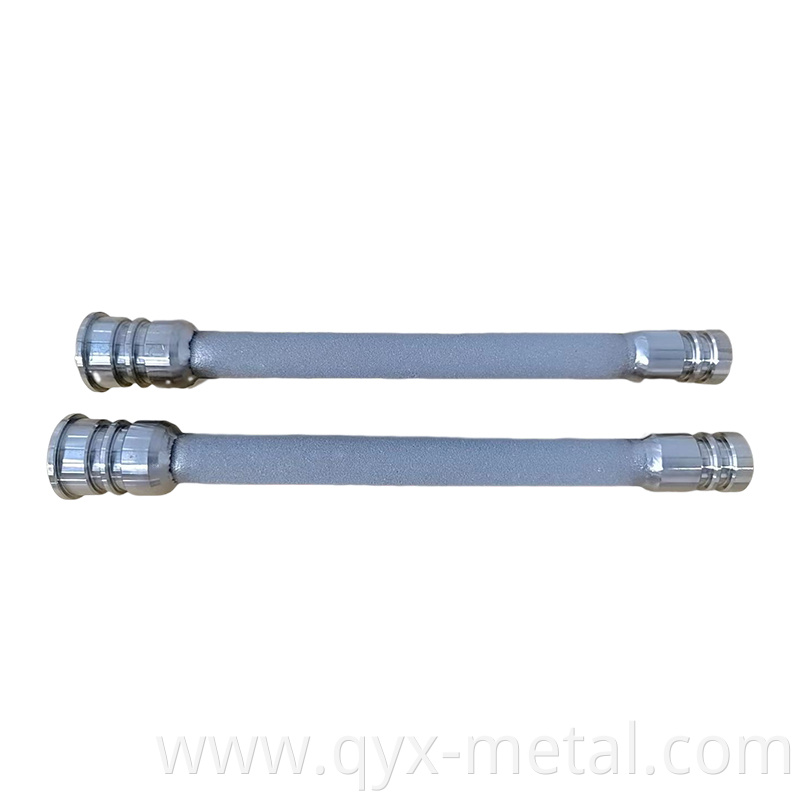

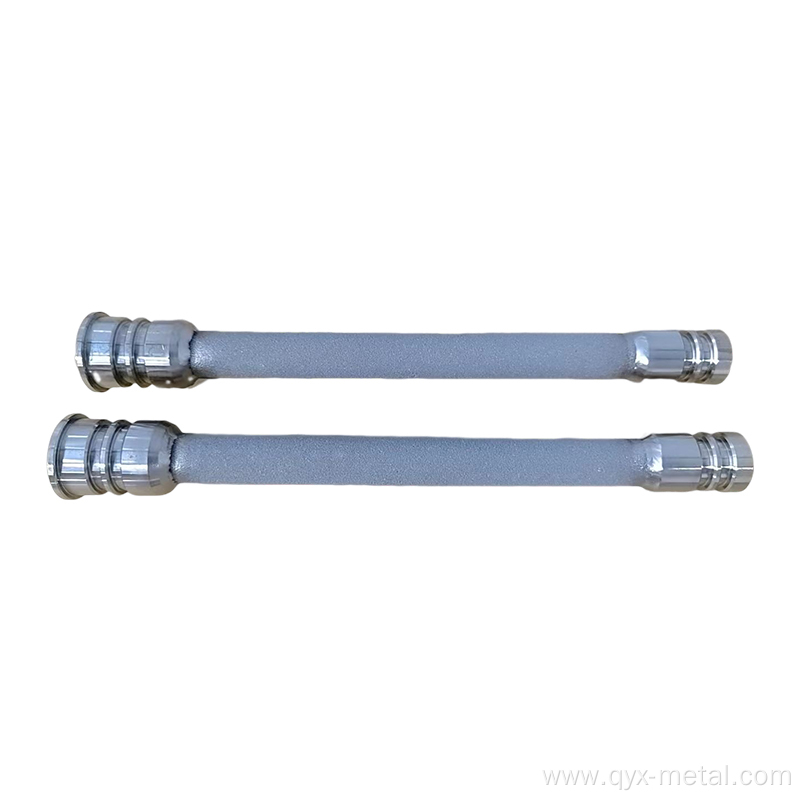

Picture Example:

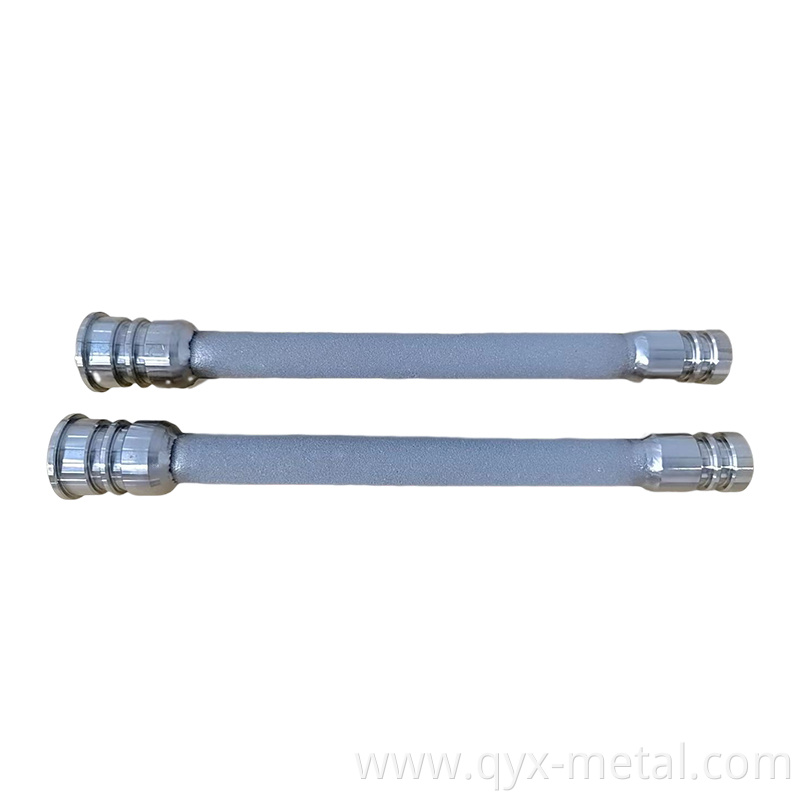

Hydrogenation unit Porous Titanium Electrode Filter Elements

hydrogenation unit porous titanium electrode filter elements Powder sintered filter element is made of titanium/stainless steel powder by mould pressing, high-temperature vacuum sintered and then annealed. With high mechanical strength, high temperature, good corrosion resistance, uniform aperture distribution, good permeability, can be cleaned and recycled, welding machine, such as mechanical processing. hydrogenation unit porous titanium electrode filter elements Widely used in the recovery of catalysts, chemical, pharmaceutical, beverage, food, metallurgy, petroleum, environmental protection and other fields of gas and liquid filtration and separation; all kinds of gas, steam dust removal, bacteria removal, oil mist, silencing, flame resistance, gas buffer, etc.

Material	Filter Accuracy	Operating Temperature in air	Compression Strength	Porosity	Filter rating	Dimension	Feature
Stainless steel	0.2um-100um	500℃	2.5Mpa	28%-50%	98%-99.9%	WT:2.5-3mm OD: Φ20mm-Φ200mm L100mm-L1200mm	Corrosion resistance, oxidation resistance and wear resistance
titanium Gr1	0.5um-50um	600℃	2.5Mpa	35%-45%	98%-99.9%	Tube: Φ10mm-Φ200mm Plate Thickness: 0.5-10mm Dia: Φ5mm- 300mm	Low density, high specific strength, corrosion resistance and good compatibility
Nichrome powder	0.5um-70um	800℃	3Mpa	35%-45%	98%-99.9%	Tube: Φ20mm-Φ200mm WT;2.5-3mm, L50mm-L1200mm Plate: Φ5mm-Φ300mm Thickness:0.5-10mm	High filtration accuracy, stable pore and high temperature resistance

Filter level	Filter Precision (um)	Maximum aperture (Um)	Breathability M³/h.m².kPa	Thickness mm	Pressure Resistance Mpa/cm³
T9	0.2	2.5	1.5	3	3.0
T8	0.5	4	3	3	3.0
T7	1	5	6	3	2.5
T6	3	10	12	3	2.5
T5	6	15	42	3	2.0
T4	10	30	90	3	2.0
T3	20	50	200	3	1.5
T2	35	100	450	3	1.5
T1	60	150	650	3	1.0
	80	180	800	3	1.0
1. Following the standard : GB/T 6887 - 2019 2. Finished filter elements, the pressure resistance not less than 0.3 Mpa. 3. Tubular elements need to be subjected to an external pressure test.

Specification

item	titanium porous electro tubular
Place of Origin	China
	Shaanxi
Brand Name	QYX
Application	hydrogenation unit
Technique	sintered & Rolled
Grade	titanium
Powder Or Not	Not Powder
Ti Content (%)	99.8%
Processing Service	Rolled
Product Name	sintered titanium filter elements
Shape	tube, disc, plate
Material	titanium,nickel,monel,Hastelloy
Standard	GB/T6887-2007
filter level	T9
filtration precision	0.2 um-80 um
Breathability	1.5
thickness	0.5-3mm
Compressive strength	3.0 mpa/cm3
Porosity	2.5 um
