titanium VT1-0 corrosion resistance titanium check valve

$100 - 1000 /Piece/Pieces

Size:

2in
2 1/2in
1 1/4in
1 1/2in
2 1/2in
1/4in
3/8in
1/2in
3/4in
1 1/4in
1 1/2in

Material:

Alloy
TITANIUM

pressure:

High Pressure
Low Pressure
Medium Pressure
Other
Vacuum

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Company Overview

< >

Overview

Product Attributes

Model No.: QYX

Warranty Period: 3 Years

Types Of: Metal Check Valves

Certification: Gs

Support Customization: Oem

Place Of Origin: China

Application: General

Power: Manual, Pneumatic, Electric, Hydraulic, Solenoid

Flow Medium: Acid, Gas, Water, Base, Oil

Structure: Check

Medium Temperature: High Temperature, Low Temperature, Medium Temperature, Normal Temperature

Supply Ability & Additional Information

Packaging: wooden case

Transportation: Ocean,Land,Air,Express

Supply Ability: 100 sets/month

Port: Shanghai,Tianjin,Shenzhen

Payment Type: L/C,T/T,Paypal,Others

Incoterm: FOB,CIF,EXW,DDP,Express Delivery

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: wooden case

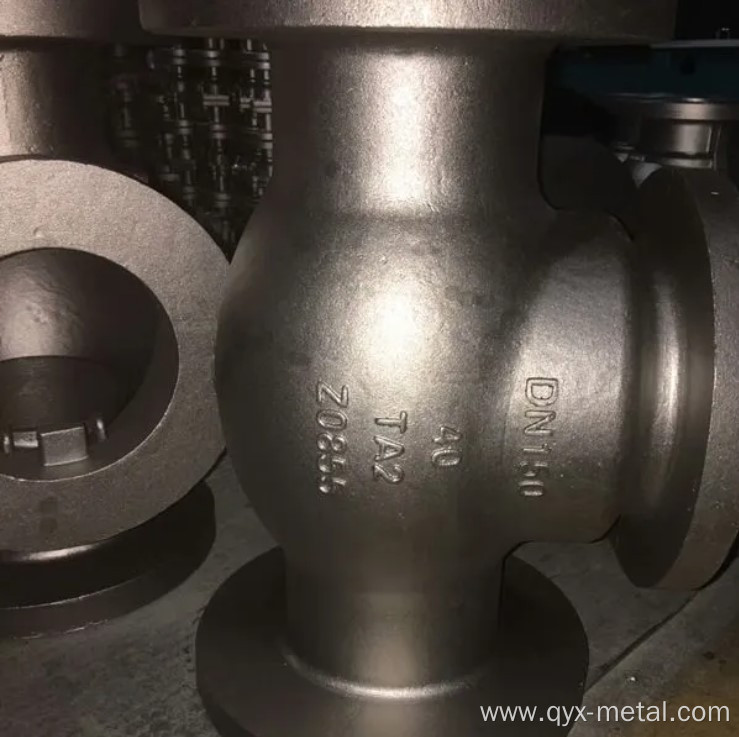

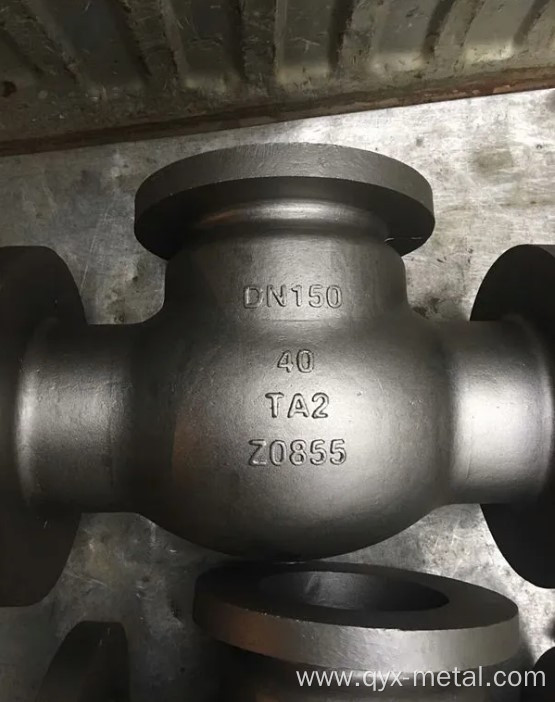

Picture Example:

titanium VT1-0 corrosion resistance Titanium Check Valve

titanium VT1-0 corrosion resistance titanium check valve is used in various industries such as power generation, chemical, fertilizer, petrochemical, oil and gas, construction, automobile, food, pulp and paper, and so on. titanium VT1-0 corrosion resistance titanium check valve is also used in general purpose industries such as heat exchangers, condensers, seawater equipment, and so on. They are available in the market in the form of ball valves, double block valves, manifold valves, relief valves, and metering valves. Thread Vertical Check Valve is a type of spring valve check valve that is hollow in between it prevents backward flow of fluids.

Titanium Grade 2 Check Valves are known as high performance titanium alloy valves that can work in high temperature and high pressure. They display good toughness and strength at rising temperatures. VT1-0 corrosion resistance check valve is best suited for industrial use as they do not easily deform. They have low density and can survive in cryogenic temperatures as well. They can be used in chlorine as well as in an acidic environment. titanium valve are passed through various tests to confirm their quality.

titanium valve

Product Categories : Titanium Valve > Titanium Check Valve

Company Overview

Titanium Grades	UNS	Alloy	Titanium Valve Types	Specifications
Titanium Grade 1	R50250	Commercially pure	• Ball Valves • Gate Valves • Globe Valves • Check Valves • Needle Valves • Cryogenic Valves • DB&B Valves • Plug Valves • Butterfly Valves • And other types	• ASTM B381 • PED 97/23/EC • ANSI, API, EN and others.
Titanium Grade 2	R50400	Commercially pure
Titanium Grade 5	R56400	Ti-6Al-4V
Titanium Grade 7	R52400	Ti-0.15Pd
Titanium Grade 9	R56320	Ti-3Al-2.5V
Titanium Grade 12	R53400	Ti-0.3Mo-0.8Ni

Ball Valves	Check Valves
Globe Valves	Butterfly Valves
Gate Valves

Ti Alloy Valves Specification List

Material	Titanium
Seal Material	PTFE/ RPTFE
Working Pressure	1.6 – 6.4Mpa
Working Temperature	-29°C — +180°C
Availabe Size	1/2″-4″,(DN15-DN100)
Available Connection	BSP/ BSPT/ NPT/ Flanged/ Welded
Nominal Pressure	P10/PN16
Operation	Manual,Pneumatic, Electric
Suitable Medium	Water,Sewage,Seawater,Gas,Food,Oils,etc
Standards	GB9112,DIN2501,BS4504,ISO2084,ANSI125
Applications	Water, Oil, Gas,
Nominal Diameter	DN40-DN300 handle lever DN350-DN1200 gear box
Operation Temperature	-10°C~150°C

Titanium Valves Chemical Composition

Grade	Ti	C	Fe	H	N	O
Ti Grade 2	99.2 min	0.1 max	0.3 max	0.015 max	0.03 max	0.25 max

Alloy Ti Valve Mechanical Analysis

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
4.5 g/cm3	1665 °C (3030 °F)	Psi – 49900 , MPa – 344	Psi – 39900 , MPa – 275	20 %

Ready Stock of Titanium alloy Valve

Titanium Trunnion Ball Valve	grade 2 titanium Pinch Valve
titanium steel alloy Swing Check Valve	gr 2 titanium Reducing Valve
titanium steel Angle Control Valve	titanium grade 5 Ball Valve
titanium grade 2 Globe Valve	ti grade 5 Butterfly Valve
titanium grade 5 Needle Valve	grade 5 titanium Gate Valve
ti grade 5 Y Type Control Valve	grade 2 titanium Plug Valve
grade 5 titanium Cryogenic Valve	Titanium Diaphragm Valve

Stockist of Ti Alloy Exhaust Valves, Check Titanium Grade 5 Needle Valves Dimensions

Equivalent Grade of Ti Alloy Valves

STANDARD	UNS	WERKSTOFF NR.
Titanium Gr. 2	R50400	3.7035

Titanium Exotic Alloy Valves Applications

Bolted Bonnet
Disk angle for low pressure drop and quick closing
Tight sealing
For DN500 (20") and larger double and multidoor configurations reducing noise and size
Horizontal and vertical installation
Flanges to ANSI B.16.5 and B.S. 1560 raised face
Valve design and shell wall thickness in accordance with ANSI B. 16.34
Face to face in accordance with ANSI B.16.10

Size Range of Titanium Instrumentation Ball Valve

Size: 1/2" to 4" (DN25-DN200)
Thread: NPT PT BSPP G
Connection : Welded, Socket, Clamped, Flanged, Threaded
Pressure Class: PN10/ 16

Advantages of 3000 PSI Titanium Ball Valve

Low torque Operation
Positive leak free seal assembly and reassembly
Size range from 1/16” to 2”

View Ti Grade 5 Y Type Control Valve Weight Chart, Leading Supplier of Titanium gate valves

Uses Ti Alloy Valve

High strength, low density
Has been used where a 50 year life was required (Shell Troll- ballast system)
Casting is a specialist process
Very good for Acids (Nitric, Hydrochloric) and wet Chlorine too

Technical Specification of Ti Alloy Gate Valve

Design Standard: API, ASME, EN, ISO, JIS, DIN, BS, GB
Connection type: Flange, Wafer, Lug
Pressure range: 150LB, 1.0MPa~25.0MPa
Size range: NPS 3/8”-40”, DN10~DN1000
Drive: Hand wheel, Gear, Electric, Pneumatic actuator

Titanium Gate Valve Features

The knife shape gate can easily cut off materials, fibres and sundries, preventing clogging and easy for closure and open.
Replaceable seat make sure easy for repairing.
Designed with straight type, small flow resistivity and more safe application.
Handwheel with anti-corrosive plastic coating, which obtains good look and convenient for handle
The complete round port area provides maximum flow capacity and minimum head loss.
