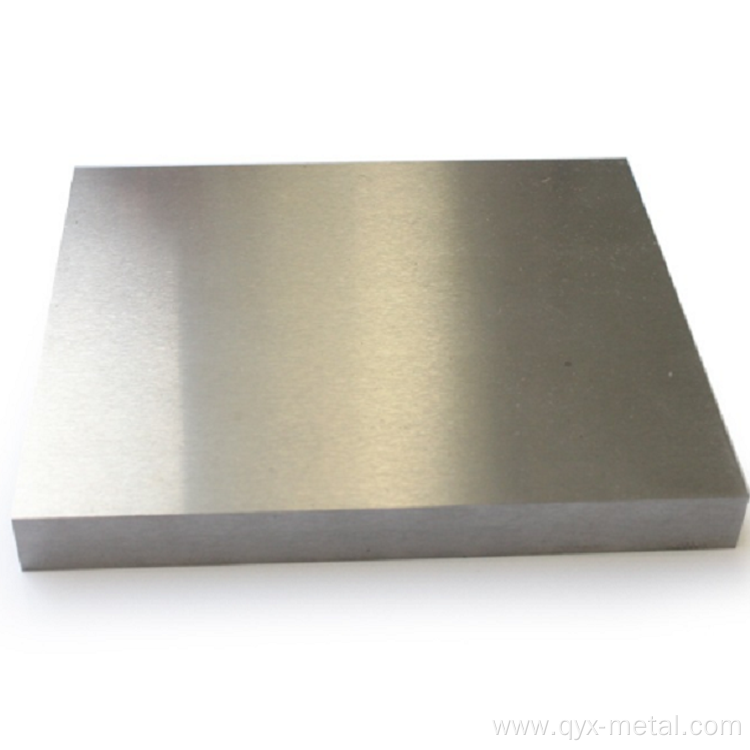

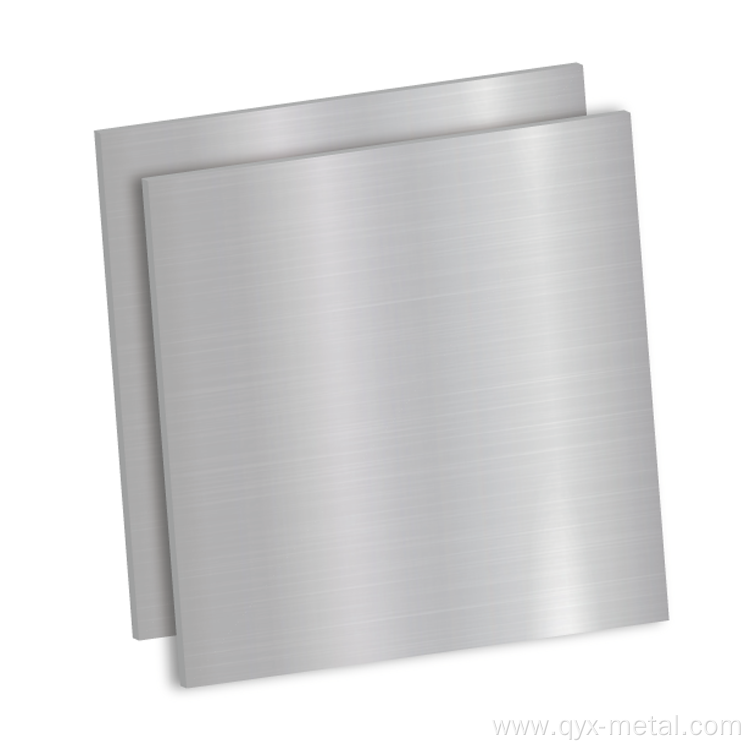

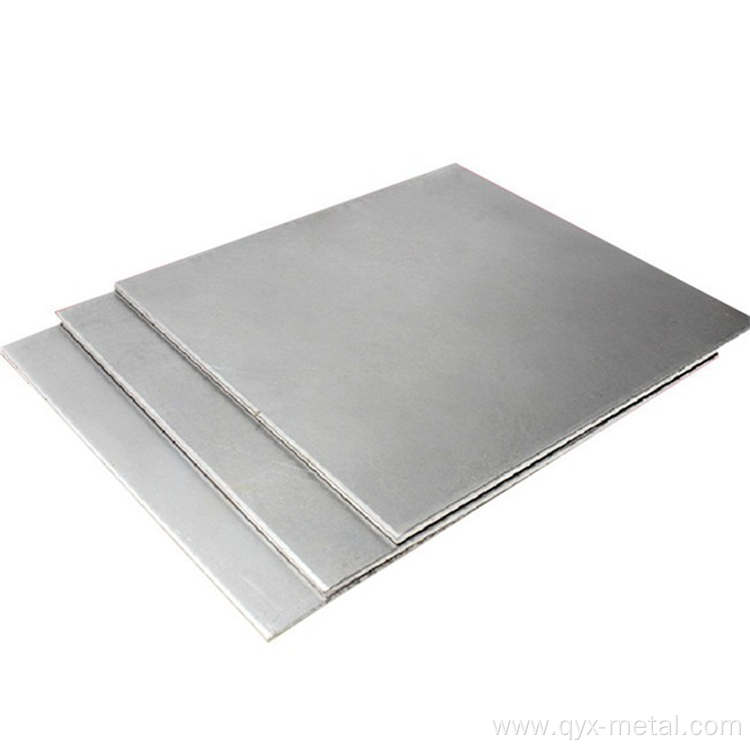

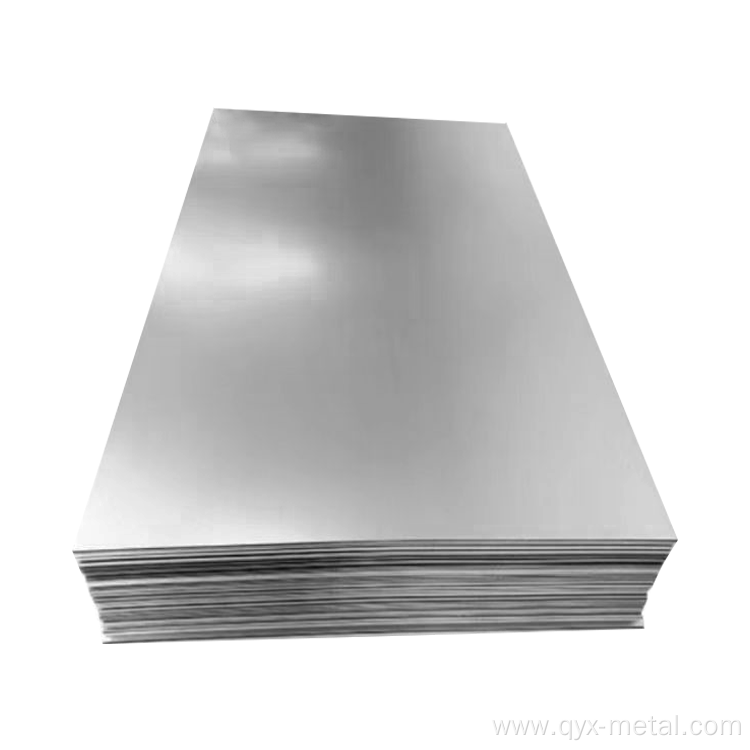

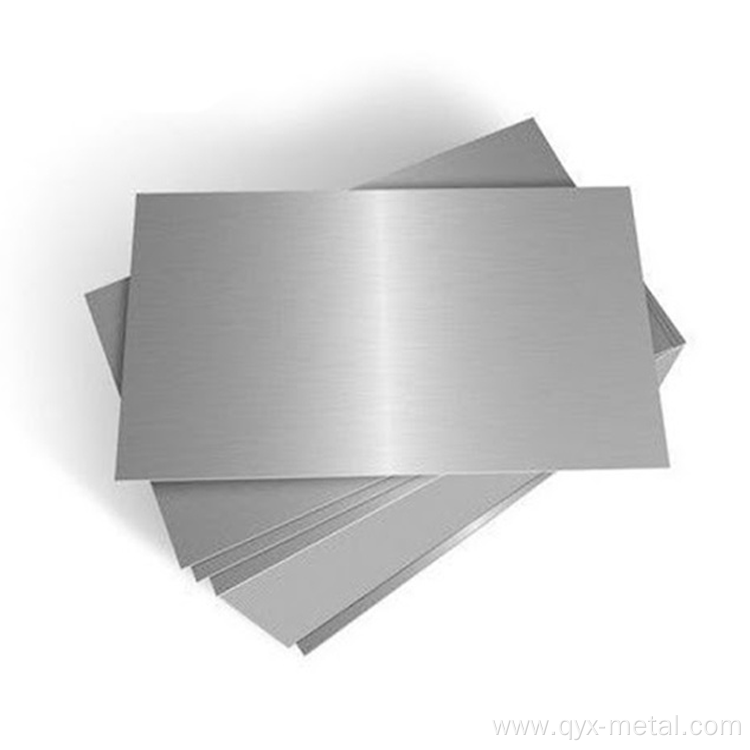

GR5 medical grade titanium plate BT6 BT9 titanium

$10 - 20 /kilogram

thickness:

0.1-200mm

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Technique: Cold Rolled

Grade: Gr5

Ti (Min): 99.5%

Brand Name: Qi yue xin

Processing Service: Bending

Product Name: Gr2 Gr5 Titanium Plate

Shape: Square Flat Sheet Plate Rectangular

Standard: ASME SB265/ASTM B265

Type: Astm B265 Titanium Plate

Advantage: Chinese Titanium Valley"-Baoji

Surface: Bright Polished Satin Titanium Sheet

Plate Cutting Method: Water Jet Cutting

MOQ: 1kg

Package: Wooden Case

Place Of Origin: China

Production Process: Cold Rolled

Material: Gr5, Titanium GR2 GR1

Place Of Origin: Shaanxi, China

Application: Industry

Width: 400-3000mm

Length: 6000mm max

Supply Ability & Additional Information

Packaging: wood for outsdie packing.

Transportation: Ocean,Land,Air,Express

Supply Ability: 10000 Kilogram/Kilograms per Month

Port: Shanghai,Tianjin,Shenzhen

Payment Type: L/C,Western Union,D/P,D/A,T/T,MoneyGram

Incoterm: FOB,CFR,CIF,EXW

Packaging & Delivery

Selling Units:: kilogram

Package Type:: wood for outsdie packing.

GR5 medical grade Titanium Plate BT6 BT9 titanium Surgical implants with Ti 6al 4v eli (ultra low clearance)alloy material standard specification(UNS R56401)
VT6 Titanium Alloy Plate, furnished as descaled , as pickled, as sand blasted, chemical milling, grinding, machining, peeling, polishing these combination, operation or method specified by yours
Condition-annealed or cold-work.

Dimension range:
(0.3 ~3.0) × (400 ~1000) × ≤ 3000mm
(0.1~0.3) × (100 ~500) ×L mm
(0.02~0.1) × (50~300) ×Lmm

Application:
VT-9 Titanium Plate are used to manufacture for implanting medical devices, prostheses or artificial organs and auxiliary treatment equipment in the human body. There are mainly Ti 6 Al 4V, Ti5Al2.5Sn, Ti6Al4V ELI and other alloys. titanium medical sheet price They have high specific strength, mechanical properties close to human bones, far superior to pure titanium, and also have the characteristics of fatigue resistance, corrosion resistance and excellent biocompatibility.
Medical Titanium plates are widely used in various artificial joints, artificial bones, bone fixation devices, dentures, dental
implants, fixed bridges, etc. Medical titanium plates are used in a wide range of medical applications. In many artificial bone materials, medical titanium plates have become an indispensable part of medical devices.

Alloy	Specifications	UTS (psi)	YS (psi)	EI (%)	RA (%)
		ksi min.	ksi min.	% min.	% min.
CP-1	ASTM B265 / B348 Grade 1	35	20	24	30
CP-2	ASTM B265 / B348 Grade 2	50	40	20	30
CP-3	ASTM B265 / B348 Grade 3	65	55	18	30
CP-4	ASTM B265 / B348 Grade 4	80	70	15	25
Ti 6AI-4V	ASTM B265 / B348 Grade 5	130	120	10	25
Ti 6AI-4v ELI	ASTM B265 / B348 Grade 23	120	110	10	15
Ti-Pd	ASTM B265 / B348 Grade 7	50	40	20	30
TiCode 12	ASTM B265 / B348 Grade 12	70	50	18	25

COMMERCIALLY PURE TITANIUM SHEET
Grade 1 CP 4 Titanium Sheet \| UNS R50250	Grade 2 CP 3 Titanium Sheet \| UNS R50400	Grade 3 CP 2 Titanium Sheet \| UNS R50550	Grade 4 CP 1 Titanium Sheet \| UNS R50700
· ASTM B265 Gr 1, ASTM F67, ASTM B348 Gr 5, ASTM A582, ASTM F1472 · AMS 4928, AMS 4967, AMS 5643, AMS 6931, AMS-STD-2154 Type 1 Class A · ASME SB348 Gr 5, MIL-STD 2154 Type 1 Class A, MIL-T 9047G 64 · BS 3TA12, EN 10204.3.1, ISO 5832-2 Grade 1	· ASTM B265 Gr 2, ASTM F67 · ASME SB265 · EN 10204.3.1	· AMS 4900 · AMS-T-9046 CP 2 · ASME SB26 · ASTM B265, ASTM F67 · EN 10204.3.1 \| 5	· AMS 4901 · AMS-T-9046 CP 1 · ASTM B265 Gr 4, ASTM F67 · ASME SB265 · EN 10204.3.1

Titanium Alloy Sheet
6Al-4V Grade 5 Titanium Sheet \| UNS R56400	6Al-4V ELI Grade 23 Titanium Sheet \| UNS R56407	Grade 7 Titanium Sheet \| UNS R52400
· AMS 4911, AMS-T-9046 · ASTM B265 Gr 5, ASTM F1472 · EN 10204.3.1	· AMS 4907, AMS-T-9046 · ASTM B265 Gr 23, ASTM F136	· ASME SB265 · ASTM B265 · EN 10204:2005 3.1

Specification

item	titanium BT9 plate sheet
Place of Origin	China
	Shaanxi
Application	Industry
Width	400-3000mm
Length	6000mm max
Technique	Cold Rolled
Grade	GR5
Ti (Min)	99.5%
Brand Name	Qi yue xin
Processing Service	Welding, Decoiling, Cutting, Punching

Baoji qiyuexin metal materials Co., Ltd. is located in the east zone of Shaanxi Baoji high tech Industrial Development Zone,

whichis known as "China Titanium Valley". It was established in 2018 with a registered capital of 3 million yuan. It is an

enterpriselong engaged in the processing and manufacturing of titanium and other rare metals. It has profound inside informationand richexperience in the production of rare metals. The company has passed the ISO9001 quality management system certification.Over theyears, with strong technical strength, high-quality and mature products and perfect quality management system, the companyhasachieved rapid development. So far, its products are exported to home and abroad. Baoji qiyuexin metal materials Co., Ltd.focuseson the production of Titanium Pipe Fittings, titanium, nickel, Zirconium , Molybdenum , flanges, pipe fittings andothernon-standard products. Its products include bar, plate, pipe, wire, foil, special-shaped drawing processing parts of variousmetalmaterials, various metal composite diamond bits, and pipe targets, round targets and plate targets used in vacuum sputtering coating industry; And can provide customers with national standard (GB / T) and American Standard (ASTM) and otherproductiontechnical standards of various metals and their alloy materials.

FAQ

1. who are we?
We are based in Shaanxi, China, start from 2018,sell to Eastern Europe(35.00%),Southern Europe(30.00%),Western Europe(20.00%),Northern Europe(10.00%),North America(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
titanium vavle,Titanium Flange,Titanium Pipe fittings,titanium machined parts,Titanium Materials

4. why should you buy from us not from other suppliers?
The company is located in the "China Titanium Valley", engaged in the development and design of the metal industry for many years, and has a mature processing body and design system!

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
