casting & forged titanium flange floating ball valve

$100 - 500 /Piece/Pieces

Size:

1/4in
3/8in
1/2in
3/4IN
1in
1 1/4in
1 1/2in
2in
2 1/2in

Material:

titanium

pressure:

Vacuum
Low Pressure
High Pressure
Medium Pressure
Other

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Company Overview

< >

Overview

Product Attributes

Warranty: 3 Years

Type: titanium ball valve

Customized Support: Oem, Odm, Obm

Brand Name: QIYUEXIN

Application: General

Temperature Of Media: High Temperature, Low Temperature, Medium Temperature, Normal Temperature

Power: Hydraulic, Pneumatic, Manual, Solenoid, Electric

Media: Base

Port Size: Dn20-Npt

Material: Titanium

Product Name: Titanium ball valve

Pressure: Pn16

Packing: Wooden Case

Certificate: Iso9001

Working Pressure: Pn10 Pn16 Pn25

Working Temperature: -29~150℃,-40~450℃

Applicable Medium: Liquefied Petroleum Gas

Working Medium: Air Water Oil Gas

Suitable Medium: Corrosive Gas

Warranty Period: 3 Years

Types Of: Ball Valves

Certification: Gs

Support Customization: Oem

Place Of Origin: China

Medium Temperature: Normal Temperature, Low Temperature, High Temperature, Medium Temperature

Flow Medium: Acid, Gas, Water, Oil, Base

Place Of Origin: Shaanxi, China

Structure: Ball

Supply Ability & Additional Information

Packaging: wooden case

Transportation: Ocean,Land,Air,Express

Supply Ability: 3000 pcs per Month

Port: Shanghai,Tianjin,Shenzhen

Payment Type: L/C,Western Union,T/T,MoneyGram

Incoterm: FOB,CIF,EXW,Express Delivery,DDP

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: wooden case

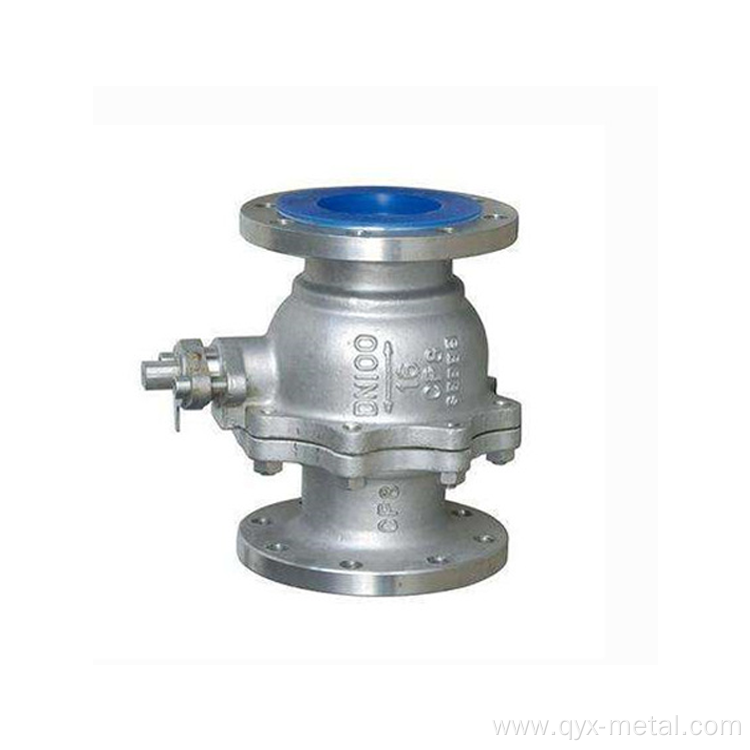

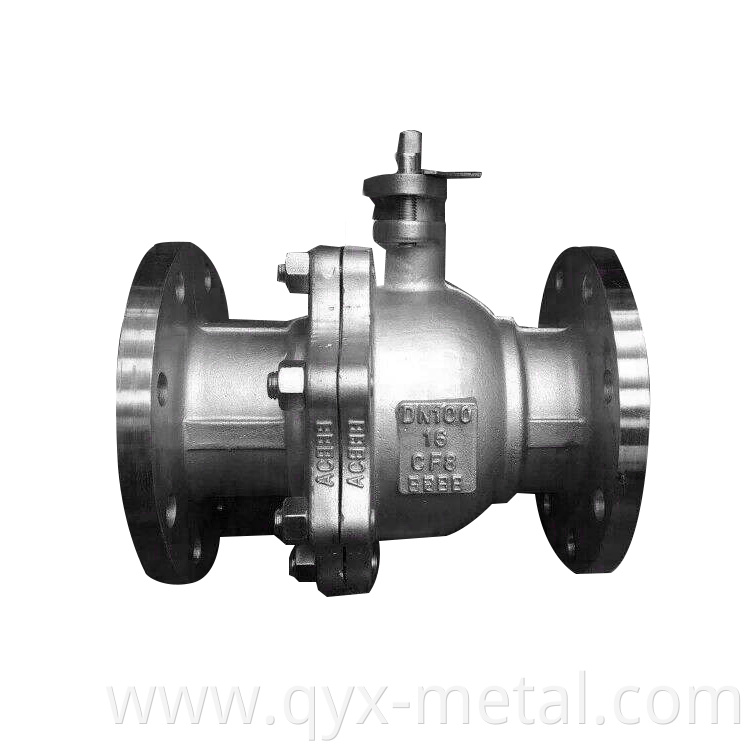

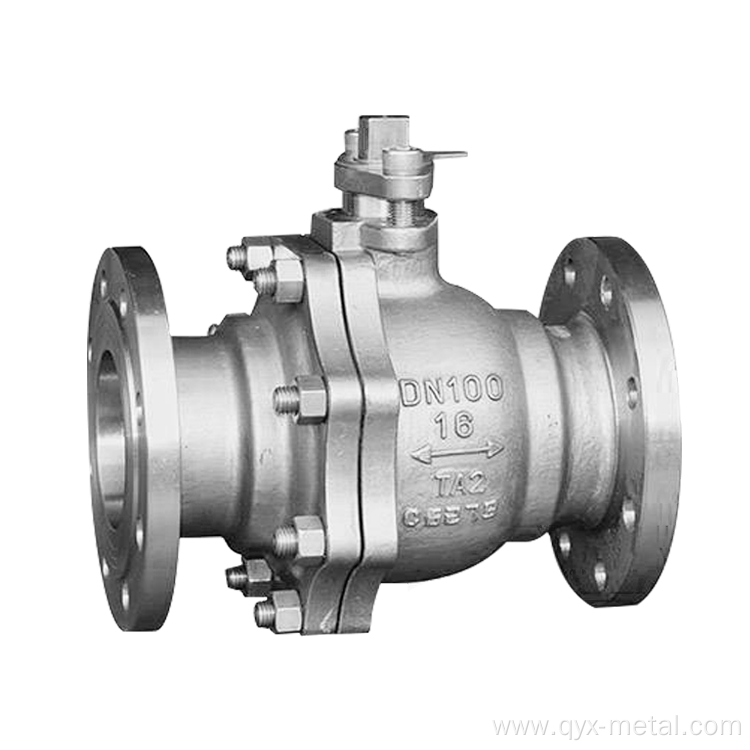

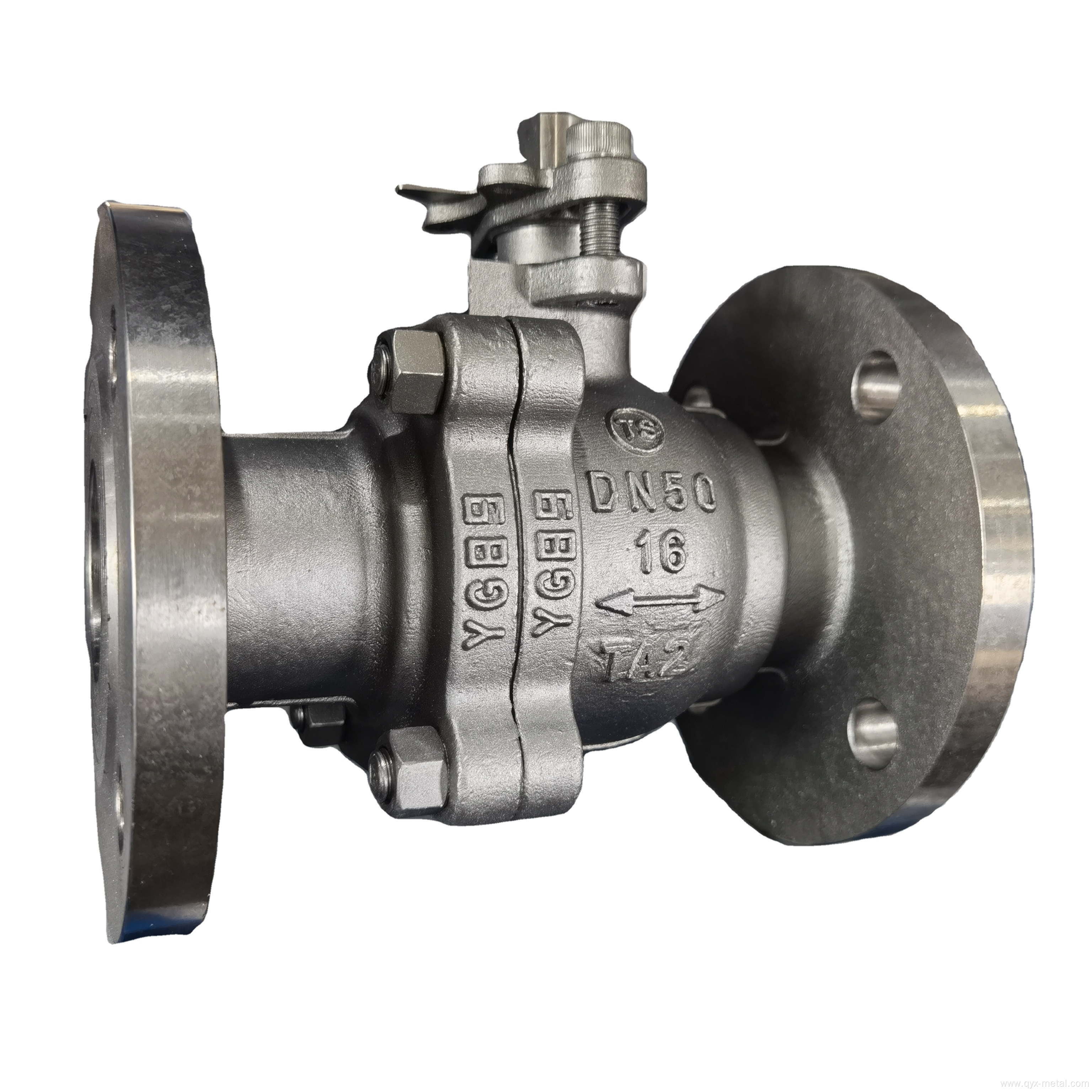

Casting & Forged Titanium Flange Floating Ball Valve

Casting & Forged Titanium Flange Floating Ball Valve is a high-quality valve used in various industries. It is made using a casting and forging process, which ensures its durability and reliability. The valve features a titanium flange that makes it resistant to corrosion and erosion, making it ideal for use in harsh environments. With its floating ball design, the valve provides a tight seal, ensuring that there is no leakage. This valve is an excellent choice for applications that require high performance and reliability.

Material	Titanium
Seal Material	PTFE/ RPTFE
Working Pressure	1.6 – 6.4Mpa
Working Temperature	-29°C — +180°C
Availabe Size	1/2″-4″,(DN15-DN100)
Available Connection	BSP/ BSPT/ NPT/ Flanged/ Welded
Nominal Pressure	P10/PN16
Operation	Manual,Pneumatic, Electric
Suitable Medium	Water,Sewage,Seawater,Gas,Food,Oils,etc
Standards	GB9112,DIN2501,BS4504,ISO2084,ANSI125
Applications	Water, Oil, Gas,
Nominal Diameter	DN40-DN300 handle lever DN350-DN1200 gear box
Operation Temperature	-10°C~150°C

Product Categories : Titanium Valve > Titanium Ball Valve

Company Overview

Titanium Grades	UNS	Alloy	Titanium Valve Types	Specifications
Titanium Grade 1	R50250	Commercially pure	• Ball Valves • Gate Valves • Globe Valves • Check Valves • Needle Valves • Cryogenic Valves • DB&B Valves • Plug Valves • Butterfly Valves • And other types	• ASTM B381 • PED 97/23/EC • ANSI, API, EN and others.
Titanium Grade 2	R50400	Commercially pure
Titanium Grade 5	R56400	Ti-6Al-4V
Titanium Grade 7	R52400	Ti-0.15Pd
Titanium Grade 9	R56320	Ti-3Al-2.5V
Titanium Grade 12	R53400	Ti-0.3Mo-0.8Ni

Ball Valves	Check Valves
Globe Valves	Butterfly Valves
Gate Valves

Ti Alloy Valves Specification List

Material	Titanium
Seal Material	PTFE/ RPTFE
Working Pressure	1.6 – 6.4Mpa
Working Temperature	-29°C — +180°C
Availabe Size	1/2″-4″,(DN15-DN100)
Available Connection	BSP/ BSPT/ NPT/ Flanged/ Welded
Nominal Pressure	P10/PN16
Operation	Manual,Pneumatic, Electric
Suitable Medium	Water,Sewage,Seawater,Gas,Food,Oils,etc
Standards	GB9112,DIN2501,BS4504,ISO2084,ANSI125
Applications	Water, Oil, Gas,
Nominal Diameter	DN40-DN300 handle lever DN350-DN1200 gear box
Operation Temperature	-10°C~150°C

Titanium Valves Chemical Composition

Grade	Ti	C	Fe	H	N	O
Ti Grade 2	99.2 min	0.1 max	0.3 max	0.015 max	0.03 max	0.25 max

Alloy Ti Valve Mechanical Analysis

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
4.5 g/cm3	1665 °C (3030 °F)	Psi – 49900 , MPa – 344	Psi – 39900 , MPa – 275	20 %

Ready Stock of Titanium alloy Valve

Titanium Trunnion Ball Valve	grade 2 titanium Pinch Valve
titanium steel alloy Swing Check Valve	gr 2 titanium Reducing Valve
titanium steel Angle Control Valve	titanium grade 5 Ball Valve
titanium grade 2 Globe Valve	ti grade 5 Butterfly Valve
titanium grade 5 Needle Valve	grade 5 titanium Gate Valve
ti grade 5 Y Type Control Valve	grade 2 titanium Plug Valve
grade 5 titanium Cryogenic Valve	Titanium Diaphragm Valve

Stockist of Ti Alloy Exhaust Valves, Check Titanium Grade 5 Needle Valves Dimensions

Equivalent Grade of Ti Alloy Valves

STANDARD	UNS	WERKSTOFF NR.
Titanium Gr. 2	R50400	3.7035

Titanium Exotic Alloy Valves Applications

Bolted Bonnet
Disk angle for low pressure drop and quick closing
Tight sealing
For DN500 (20") and larger double and multidoor configurations reducing noise and size
Horizontal and vertical installation
Flanges to ANSI B.16.5 and B.S. 1560 raised face
Valve design and shell wall thickness in accordance with ANSI B. 16.34
Face to face in accordance with ANSI B.16.10

Size Range of Titanium Instrumentation Ball Valve

Size: 1/2" to 4" (DN25-DN200)
Thread: NPT PT BSPP G
Connection : Welded, Socket, Clamped, Flanged, Threaded
Pressure Class: PN10/ 16

Advantages of 3000 PSI Titanium Ball Valve

Low torque Operation
Positive leak free seal assembly and reassembly
Size range from 1/16” to 2”

View Ti Grade 5 Y Type Control Valve Weight Chart, Leading Supplier of Titanium gate valves

Uses Ti Alloy Valve

High strength, low density
Has been used where a 50 year life was required (Shell Troll- ballast system)
Casting is a specialist process
Very good for Acids (Nitric, Hydrochloric) and wet Chlorine too

Technical Specification of Ti Alloy Gate Valve

Design Standard: API, ASME, EN, ISO, JIS, DIN, BS, GB
Connection type: Flange, Wafer, Lug
Pressure range: 150LB, 1.0MPa~25.0MPa
Size range: NPS 3/8”-40”, DN10~DN1000
Drive: Hand wheel, Gear, Electric, Pneumatic actuator

Titanium Gate Valve Features

The knife shape gate can easily cut off materials, fibres and sundries, preventing clogging and easy for closure and open.
Replaceable seat make sure easy for repairing.
Designed with straight type, small flow resistivity and more safe application.
Handwheel with anti-corrosive plastic coating, which obtains good look and convenient for handle
The complete round port area provides maximum flow capacity and minimum head loss.
